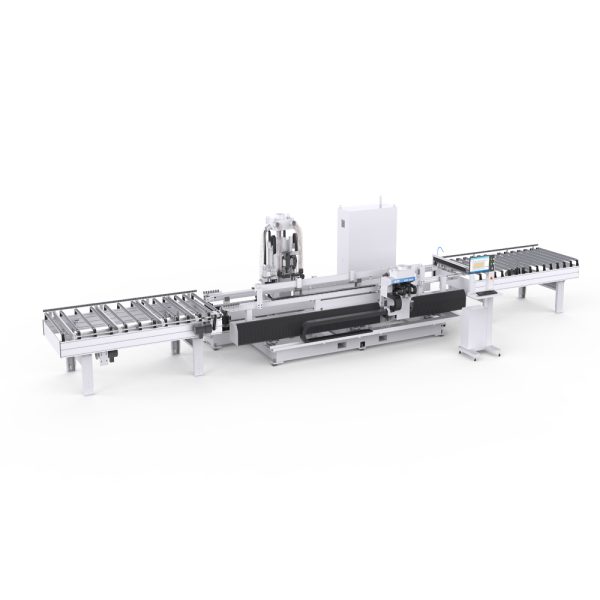

KHM-660B+KHC-303S+KHC-303M

1.Max working size 3000*1200mm
2.Min.working size 1800*300mm
3.Processing thickness 30-60mm
4.Power of X/Y/Z axis servo motor 1.5kW
5.Door lock vertical spindle 1 6kW (ER32)
6.Door lock vertical spindle 2 1.5kW (ER20)
7.Door lock horizontal spindle 1 6kW (ER32)
8.Door lock horizontal spindle 2 1.5kW (ER20)
9.Door lock horizontal spindle 3 0.75kW (ER20)
10.Hinge Horizontal Spindle 1 6kW (ER32)
11.Hinge Horizontal Spindle 2 1.5kW (ER20)
12.Hinge Horizontal Spindle 3 0.75kW (ER20)
13.Overall size（L*W*H） 12353*3280*2093mm
14.Total power 35.3kW
15.Vacuum tube size φ200mm*2

Machine Video

KHM-660B

Heavy-Duty Four-Sides Cutter door machine with four sawing units. One-click data imported. The maximum working size is 2500mm which suitable for mass production.

Auto conveyer adopts high quality wear-resistant wrapped rubber roller, horizontal lifting belt unit and using 240*50mm high-strength aluminum structure.

KHC-303S

1.Max. working size (L*W)mm 3000*1100mm
2.Panel Length (mm) 1800-3000mm
3.Panel Width (mm) 400-1100mm
4.Panel Thickness (mm) 30-60mm
5.The height of the workbench from the ground（mm） 960mm
6.Total Power(kW) 1.5kW
7.Overall Size(L*W*H)mm 3000×1680×1050 mm
The automatic conveyor uses high-quality wear-resistant rubber-coated rollers and a 240*50mm high-strength aluminum profile structure.

KHC-303M

1.Max workpiece(L*W) 2500*1100mm
2.Panel length（mm） 1800-2500
3.Panel width（mm） 400-1100
4.Panel thickness（mm） 30-60
5.Height of workbench from the ground (mm) 960
6.Power (kW) 0.75kW
7.Overall dimensions (length*width*height mm) 3000*1450*1050
