Technical Features
| Min. processing length | >350 mm | |||||||||||||||
| Max. processing width | ≦1300 mm | |||||||||||||||
| Processing height | 5-120 mm | |||||||||||||||
| The height of working table | 900±20 mm | |||||||||||||||
| Motor power of conveyor belt | 1.5 kW | |||||||||||||||
| Feed speed | 0~10 m/dak | |||||||||||||||
| Motor power of V2 sanding group | 1.5 kWx2=3 kW | |||||||||||||||
| Motor power of H2 sanding group | 1.5 kW*2=3 kW | |||||||||||||||
| Motor power of R2 sanding group | 1.5 kW*2=3 kW | |||||||||||||||
| Motor power of swing motor | 0.55 kW*4=2.2 kW | |||||||||||||||
| Motor power of lifting group | 0.37 kW*6=2.22 kW | |||||||||||||||
| Motor power of pressure roller | 0.55 kW | |||||||||||||||
| Motor power of Dedusting brush | 0.55 kW | |||||||||||||||
| Rev of V2 sanding group | 200-330 r/min | |||||||||||||||
| Rev of H2 sanding group | 200-330 r/min | |||||||||||||||
| Rev of R2 sanding roller | 260-450 r/min | |||||||||||||||
| Debug mode of sanding group | PLC control | |||||||||||||||
| Working voltage | 380V 50 Hz | |||||||||||||||
| Size of R2 sanding roller | φ300×1300 mm | |||||||||||||||
| Total power | 16.02 kW | |||||||||||||||
| Machine dimensions | 4664×2280×2234 mm | |||||||||||||||
| Number of dust collection | 8 pcs | |||||||||||||||
| Diameter of dust collection | φ150 mm | |||||||||||||||
| Average wind speed of dust collection | >25 m/s | |||||||||||||||
| Weight | 3865 kg | |||||||||||||||
| Air volume in dust collection | 12720 m³/h | |||||||||||||||
Machine Video
General Features

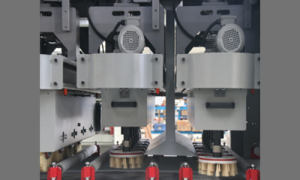

Vertical Sanding Disc (V2)
Sanding the surface of the plate, sanding the inner channel with the carved patterns.

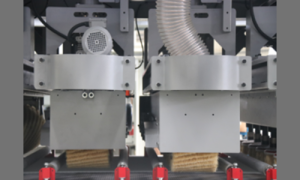

Cross-Abrasive Group (H2)
Sanding the transverse channel. After sanding, the sharp angle, the corner, is slightly rounded; this allows it to be painted during the painting process and prevents the corner from being easily damaged afterwards.

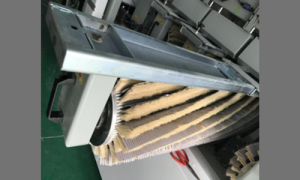

Screw Thread Longitudinal Abrasive Group (R2)
Longitudinal groove sanding, handling most grits, the inside of the groove can be sanded better to increase the cutting power of the sandpaper. The abrasive wire can be increased in smaller grooves.
Highlights
Red Sanding Strips: Before Painting

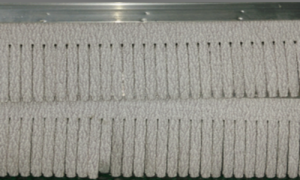

White Sanding Strips: For Primer Paint
Black Sanding Strips

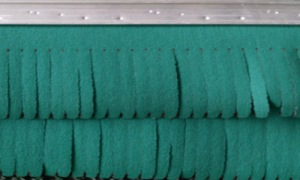

Green Sanding Strips
