KD-612KS

KD-612KH

Ürün Açıklaması

1 üst – 1 alt motor grubu mevcuttur.

Tutucu açılımı: 60 mm

Eksen işlem hızı 140 m/dk’dır.

Boşaltma konveyörü mevcuttur.

Altta ve üstte freze motoru mevcuttur. Kanal testeresi mevcuttur.

İşlem parçası boyu ölçen lazer okuyucu bulunmaktadır.

Merkezi otomatik yağlama mevcuttur.

Teknik Parametreler Ürün Videosu

Ürünlere Geri Dön
Kategoriler: Etiketler:
Açıklama

TEKNİK PARAMETRELER

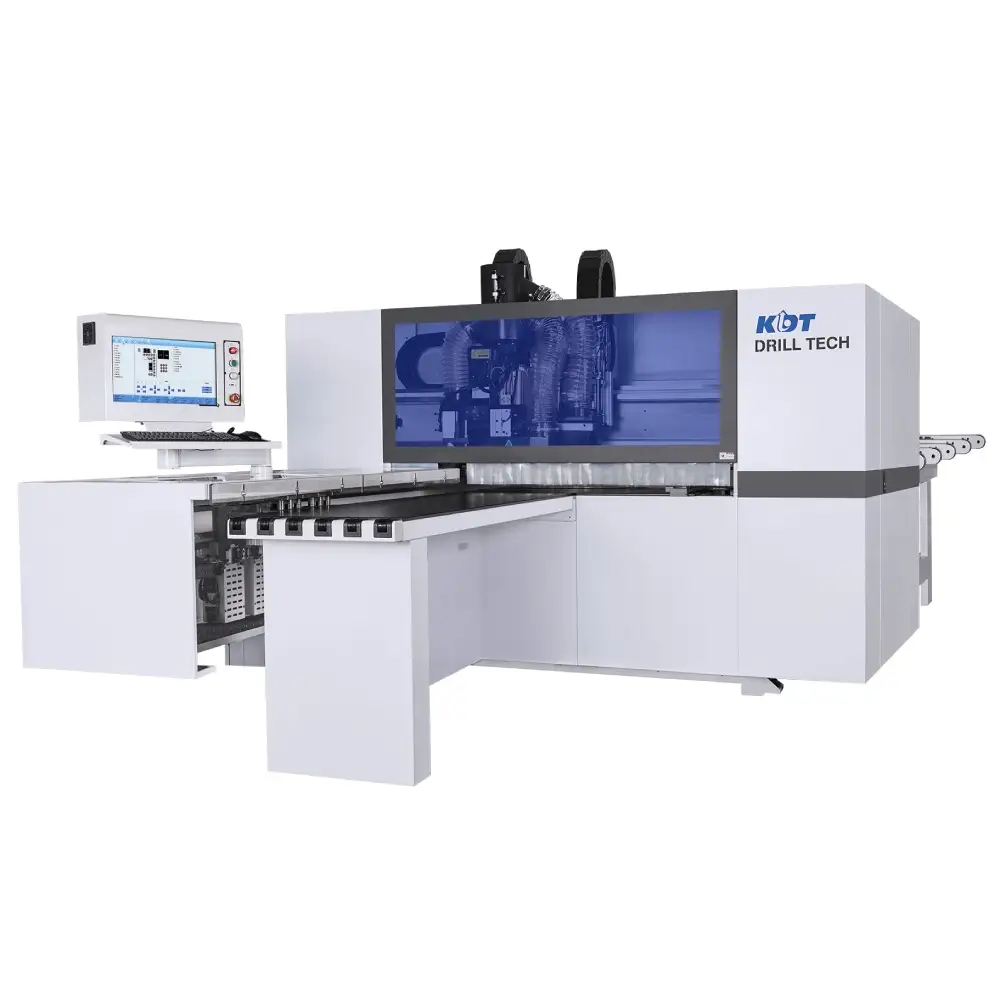

Modeli: KD-612KH
Panel Uzunluğu (mm) 200-2800
Panel Genişliği (mm) 50-1200
35-50 (L≤1000)
Panel Kalınlığı (mm) 9-60
Maksi. Besleme Hızı (m/dak) 140
Matkap Sayısı Üst dikey delme 12V + yatay delme 8H + alt dikey delme 9V Üst 12V+8H+Alt 9V
Mil (KW) 1*5.5
1*3.5
Toplam Mil (KW) 23,02
Genel Boyut L*G*Y (mm) 7508L*2620W*2190H
Toz Çıkış Ebatları ve Adetleri Ø200*1+Ø100*1

Ürün Videosu



MACHINE FRAME

Heavy-duty machine body
The frame is processed by robot welding, annealing, shot blasting, sandblasting, finishing and other processes, effectively ensuring long-term stable operation.

NEW CONTROL SYSTEM

New control system
Simulate processing path to predict processing time.

ELECTROSPINDLE PLATE(PATENTED)

Air pressure plate (patent)
The pressure plate covers a wide area, with small processing vibration and high precision, which protects the plate from being scratched.

SUPPORT TABLES(PATENTED)

Double translational air floation table(patent)
Move flexibly according to the hole position, reasonably support the panel, improve the drilling accuracy, and avoid dust accumulation at the bottom

CLAMPS

Position rod with three bearings
Accurately positioning for small boards, no scratch when change grippers

SCANNER

Scanner
Scan label to recognize working file(standard with scan gun)

AUTOMATIC SIDE ALIGNER

Side Aligner
Side aligner with double sliding block ensures a higher accuracy

ÖNE ÇIKANLAR

HEAD CONFIGURATION

Single upper drill package
Drill package:UP:12V+8H BOTTOM:9V

ÖNE ÇIKANLAR

OUTFEEDING CONVEYOR

Outfeeding conveyor with automatic sensor.

ÖNE ÇIKANLAR

DATA FORMATS

Compatible with diversified data formats
Compatible with diversified data formats, realizes the intelligent production and information management of customized furniture. Quickly responds to market demand.
